（01Series）Single Row Four Point Contact Ball Slewing Bearing

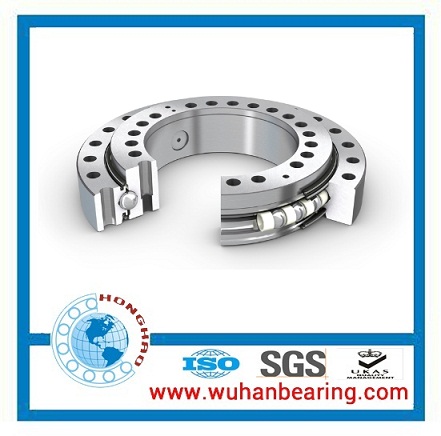

Single row four point contact ball slewing bearing is composed of two seat rings, which design in compact structure and light weight, steel ball contact with the circular raceway at four point, it can bear the axial force, radial force and the tilting moment at the same time. It can be used for slewing conveyer, welding manipulator, light & medium duty crane, excavator, and other construction machinery.

Product Description

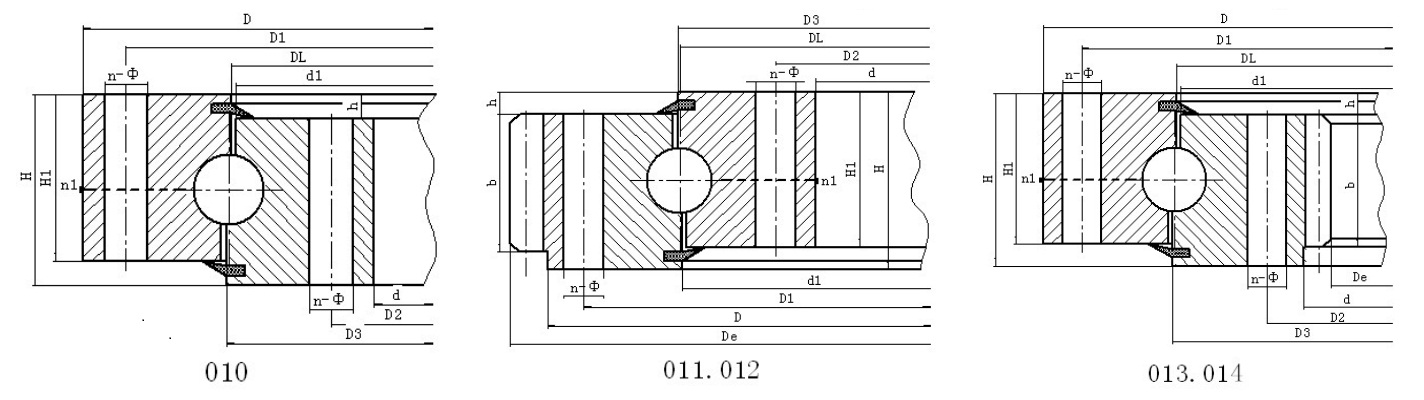

No	Non gear	Dimensions			Mounting Dimension						Structural Dimension					weight

	DL	D	d	H	D1	D2	n	mm	dm	L	n1	D3	d1	H1	h
	mm	mm	mm	mm	mm	mm			mm	mm	mm	mm	mm	mm	mm	kg
1	010.30.500	602	398	80	566	434	20	18	M16	32	4	501	498	70	10	85

2	010.30.560	662	458	80	626	494	20	18	M16	32	4	561	558	70	10	95

3	010.30.630	732	528	80	696	564	24	18	M16	32	4	631	628	70	10	110

4	010.30.710	812	608	80	776	644	24	18	M16	32	4	711	708	70	10	120

5	010.40.800	922	678	100	878	722	30	22	M20	40	6	801	798	90	10	220

6	010.40.900	1022	778	100	978	822	30	22	M20	40	6	901	898	90	10	240

7	010.40.1000	1122	878	100	1078	922	36	22	M20	40	6	1001	998	90	10	270

8	010.40.1120	1242	998	100	1198	1042	36	22	M20	40	6	1121	1118	90	10	300

9	010.45.1250	1390	1110	110	1337	1163	40	26	M24	48	5	1252	1248	100	10	420

10	010.45.1400	1540	1260	110	1487	1313	40	26	M24	48	5	1402	1398	100	10	480

11	010.45.1600	1740	1460	110	1687	1513	45	26	M24	48	5	1602	1598	100	10	550

12	010.45.1800	1940	1660	110	1887	1713	45	26	M24	48	5	1802	1798	100	10	610

13	010.60.2000	2178	1825	144	2110	1891	48	33	M30	60	8	2002	1998	132	12	1100

14	010.60.2240	2418	2065	144	2350	2131	48	33	M30	60	8	2242	2238	132	12	1250

15	010.60.2500	2678	2325	144	2610	2391	56	33	M30	60	8	2502	2498	132	12	1400

16	010.60.2800	2978	2625	144	2910	2691	56	33	M30	60	8	2802	2798	132	12	1600

17	010.75.3150	3376	2922	174	3286	3014	56	45	M42	84	8	3152	3147	162	12	2800

No	External gear	Dimensions			Mounting Dimension						Structural Dimension					Gear Data					weight
																		External gear
	DL	D	d	H	D1	D2	n	mm	dm	L	n1	D3	d1	H1	h	b	x	m	De	z
	mm	mm	mm	mm	mm	mm			mm	mm	mm	mm	mm	mm	mm	mm		mm	mm		kg
1	011.30.500	602	398	80	566	434	20	18	M16	32	4	501	498	70	10	60	0.5	5	367	74	85
	012.30.500																	6	368.4	62
2	011.30.560	662	458	80	626	494	20	18	M16	32	4	561	558	70	10	60	0.5	5	427	86	95
	012.30.560																	6	428.4	72
3	011.30.630	732	528	80	696	564	24	18	M16	32	4	631	628	70	10	60	0.5	6	494.4	83	110
	012.30.630																	8	491.2	62
4	011.30.710	812	608	80	776	644	24	18	M16	32	4	711	708	70	10	60	0.5	6	572.4	96	120
	012.30.710																	8	571.2	72
5	011.40.800	922	678	100	878	722	30	22	M20	40	6	801	798	90	10	80	0.5	8	635.2	80	220
	012.40.800																	10	634	64
6	011.40.900	1022	778	100	978	822	30	22	M20	40	6	901	898	90	10	80	0.5	8	739.2	93	240
	012.40.900																	10	734	74
7	011.40.1000	1122	878	100	1078	922	36	22	M20	40	6	1001	998	90	10	80	0.5	10	824	83	270
	012.40.1000																	12	820.8	69
8	011.40.1120	1242	998	100	1198	1042	36	22	M20	40	6	1121	1118	90	10	80	0.5	10	944	95	300
	012.40.1120																	12	940.8	79
9	011.45.1250	1390	1110	110	1337	1163	40	26	M24	48	5	1252	1248	100	10	90	0.5	12	1048.8	88	420
	012.45.1250																	14	1041.6	75
10	011.45.1400	1540	1260	110	1487	1313	40	26	M24	48	5	1402	1398	100	10	90	0.5	12	1192.8	100	480
	012.45.1400																	14	1195.6	86
11	011.45.1600	1740	1460	110	1687	1513	45	26	M24	48	5	1602	1598	100	10	90	0.5	14	1391.6	100	550
	012.45.1600																	16	1382.4	87
12	011.45.1800	1940	1660	110	1887	1713	45	26	M24	48	5	1802	1798	100	10	90	0.5	14	1573.6	113	610
	012.45.1800																	16	1574.4	99
13	011.60.2000	2178	1825	144	2110	1891	48	33	M30	60	8	2002	1998	132	12	120	0.5	16	1734.4	109	1100
	012.60.2000																	18	1735.2	97
14	011.60.2240	2418	2065	144	2350	2131	48	33	M30	60	8	2242	2238	132	12	120	0.5	16	1990.4	125	1250
	012.60.2240																	18	1987.2	111
15	011.60.2500	2678	2325	144	2610	2391	56	33	M30	60	8	2502	2498	132	12	120	0.5	18	2239.2	125	1400
	012.60.2500																	20	2228	112
16	011.60.2800	2978	2625	144	2910	2691	56	33	M30	60	8	2802	2798	132	12	120	0.5	18	2527.2	141	1600
	012.60.2800																	20	2528	127
17	011.75.3150	3376	2922	174	3286	3014	56	45	M42	84	8	3152	3147	162	12	150	0.5	20	2828	142	2800
	012.75.3150																	22	2824.8	129

No	Internal gear	Dimensions			Mounting Dimension						Structural Dimension					Gear Data					weight
																		Internal gear
	DL	D	d	H	D1	D2	n	mm	dm	L	n1	D3	d1	H1	h	b	x	m	De	z
	mm	mm	mm	mm	mm	mm			mm	mm	mm	mm	mm	mm	mm	mm		mm	mm		kg
1	013.30.500	602	398	80	566	434	20	18	M16	32	4	501	498	70	10	60	0.5	5	629	123	85
	014.30.500																	6	628.8	102
2	013.30.560	662	458	80	626	494	20	18	M16	32	4	561	558	70	10	60	0.5	5	689	135	95
	014.30.560																	6	688.8	112
3	013.30.630	732	528	80	696	564	24	18	M16	32	4	631	628	70	10	60	0.5	6	772.8	126	110
	014.30.630																	8	774.4	94
4	013.30.710	812	608	80	776	644	24	18	M16	32	4	711	708	70	10	60	0.5	6	850.8	139	120
	014.30.710																	8	854.4	104
5	013.40.800	922	678	100	878	722	30	22	M20	40	6	801	798	90	10	80	0.5	8	966.4	118	220
	014.40.800																	10	968	94
6	013.40.900	1022	778	100	978	822	30	22	M20	40	6	901	898	90	10	80	0.5	8	1062.4	130	240
	014.40.900																	10	1068	104
7	013.40.1000	1122	878	100	1078	922	36	22	M20	40	6	1001	998	90	10	80	0.5	10	1188	116	270
	014.40.1000																	12	1185.6	96
8	013.40.1120	1242	998	100	1198	1042	36	22	M20	40	6	1121	1118	90	10	80	0.5	10	1298	127	300
	014.40.1120																	12	1305.6	106
9	013.45.1250	1390	1110	110	1337	1163	40	26	M24	48	5	1252	1248	100	10	90	0.5	12	1449.6	118	420
	014.45.1250																	14	1453.2	101
10	013.45.1400	1540	1260	110	1487	1313	40	26	M24	48	5	1402	1398	100	10	90	0.5	12	1605.6	131	480
	014.45.1400																	14	1607.2	112
11	013.45.1600	1740	1460	110	1687	1513	45	26	M24	48	5	1602	1598	100	10	90	0.5	14	1817.2	127	550
	014.45.1600																	16	1820.8	111
12	013.45.1800	1940	1660	110	1887	1713	45	26	M24	48	5	1802	1798	100	10	90	0.5	14	2013.2	141	610
	014.45.1800																	16	2012.8	123
13	013.60.2000	2178	1825	144	2110	1891	48	33	M30	60	8	2002	1998	132	12	120	0.5	16	2268.8	139	1100
	014.60.2000																	18	2264.4	123
14	013.60.2240	2418	2065	144	2350	2131	48	33	M30	60	8	2242	2238	132	12	120	0.5	16	2492.8	153	1250
	014.60.2240																	18	2498.4	136
15	013.60.2500	2678	2325	144	2610	2391	56	33	M30	60	8	2502	2498	132	12	120	0.5	18	2768.4	151	1400
	014.60.2500																	20	2776	136
16	013.60.2800	2978	2625	144	2910	2691	56	33	M30	60	8	2802	2798	132	12	120	0.5	18	3074.4	168	1600
	014.60.2800																	20	3076	151
17	013.75.3150	3376	2922	174	3286	3014	56	45	M42	84	8	3152	3147	162	12	150	0.5	20	3476	171	2800
	014.75.3150																	22	3471.6	155
